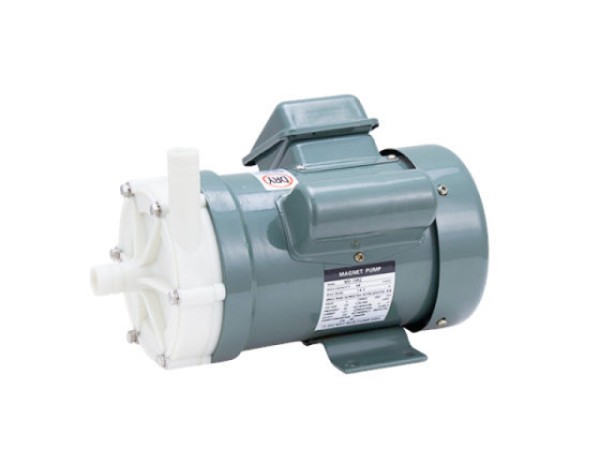

MD-70RZ
MD-70RZ
کد کالا: AJ70016
دسته بندی:
پمپ مگنت
مشخصات فنی

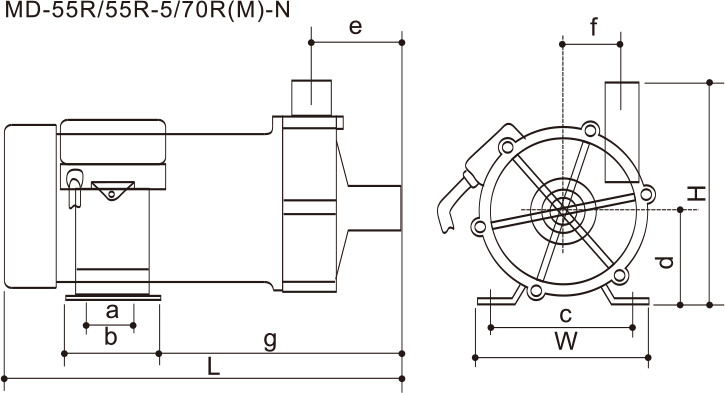

| tyoe | W | H | L | a | n | c | d | e | f | g |
| MD-55R(M) | 120 | 155 | 273.5 | 40 | 64 | 100 | 65 | 61.5(60.8) | 40 | 166.7(165.8) |
| MD-55R-5(M) | 120 | 155 | 273.5 | 40 | 64 | 100 | 65 | 61.5(60.8) | 40 | 166.7(165.8) |
| MD-70R(M) | 130 | 155 | 258 | 40 | 60 | 110 | 65 | 53 | 43 | 149 |

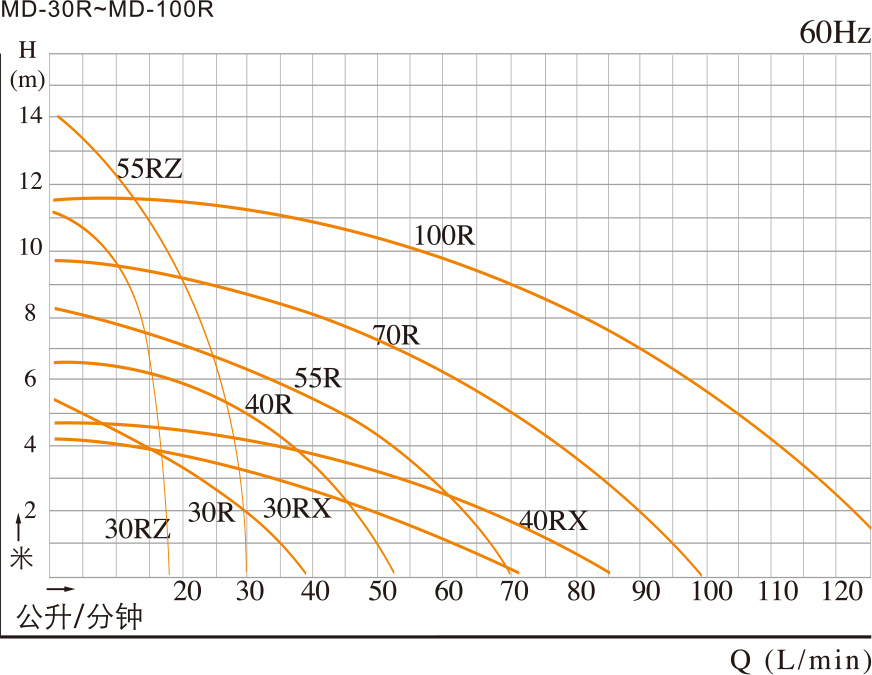

| Tyoe | Tube interface | Spiral interface | Max. Capacity L/min | Max. head m | Standard outlet m-Umin | Temperature | Specific weight | Motor | ||||
| Inlet | Outlet | Outlet-inlet (inch) | Tube | Input W | Output w | Phase | ||||||
| MD-70R | 26mm | 26mm | G 1 | 20mm | 86 | 6.7 | 4-50 | 0-80 | 1.0 | 150 | 265 | 1 or3 |
| MD-70R(M) | 26mm | 26mm | G 1 | 20mm | 86 | 6.7 | 4-50 | 0-80 | 1.0 | 150 | 265 | 1 or3 |
| MD-70RZ | 20mm | 20mm | G3Z4 | 16mm | 40 | 14.3 | 12-24 | 0-80 | 1.0 | 180 | 275 | 1 or3 |
| MD-100R | 26mm | 26mm | G 1 | 20mm | 120 | 8.6 | 6.5-60 | 0-80 | 1.2 | 260 | 365 | 1 or3 |
| MD-100R(M) | 26mm | 26mm | G1 | 20mm | 120 | 8.6 | 6.5-60 | 0-80 | 1.2 | 260 | 365 | 1 or3 |
| Tyoe | Tube interface | Outlet-inlet (inch) | Max. Capacity L/min | Max. head m | Standard outlet m-L/min | Temperature | Specific weight | Motor | |||
| Inlet | Outlet | Input w | Output W | Phase | |||||||
| MD-120R | 40mm | 40mm | gi1/2 | 150 | 8.5 | 20-100 | 0-80 | 1.2 | 270 | 370 | 1 or3 |
| MX-400 | 40mm | 40mm | G也 | 200 | 10.5 | 50-150 | 0-80 | 1.2 | 300 | 400 | 3 |
